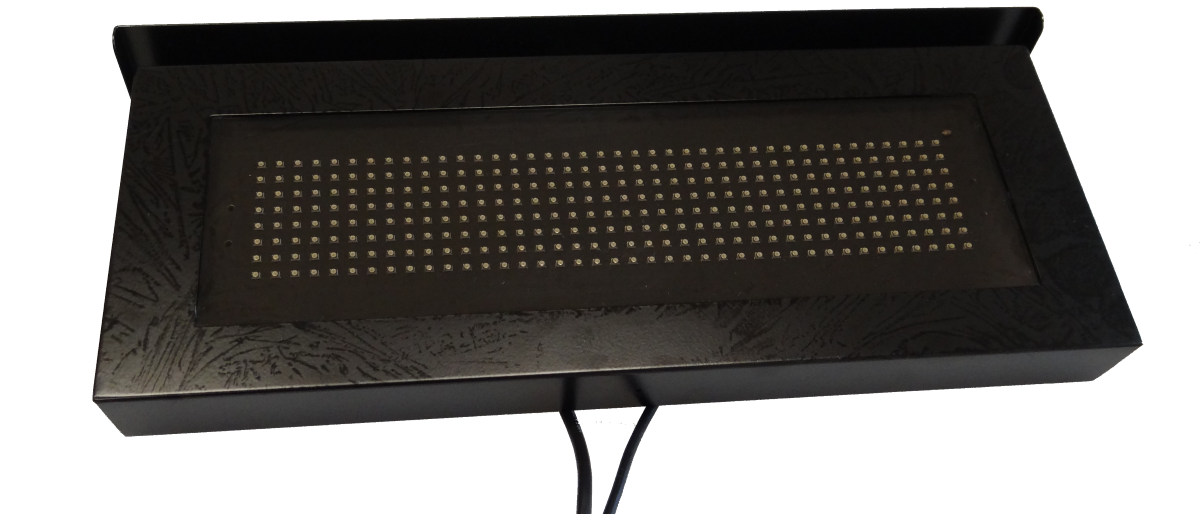

The RD60 is a remote display in painted steel casing with digit height 60 mm. Suitable to be connected to the indicators SMART, SWIFT, MATRIX II, 1020, DAT100, DAT400, DAT500.
It incorporates a fotodiod for the regulation of the bright of the diods according the surounding light
The RD-60 can be set up from the PC.
| USER INTERFACE |
||
| Display | alphanumerical led matrix display |
|
| LED diods | red diods, with high intensity |
|
| Height of digits |
60 mm | |
| Display bright |
manual (fix), automatic (reacts to the surrounding light) | |
| COMMUNICATION INTERFACE |
||
| COM1 | RS232 full duplex (15m – max cable leght) | |
| COM2 | RS422/RS485 half duplex (1000m – max. cable lenght) | |
| Transmission speed |
300, 600, 1200, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400 bauds | |
| OPTION INTERFACE |
||
| Analog input | 0 – 20 mA | |
| POWER SUPPLY, OTHER PARAMETERS |
||
| Power supply |
230 V AC, 50/60 Hz | |
| Consuption | 5 W | |
| Working temp. |
-25 °C - 45 °C | |
| Storage temp. | -25 °C - 70 °C | |
| Dimensions | 426 x 164 x 60 | |
| Weight | 3 kg | |
| Ingress protection |
IP 65 | |
